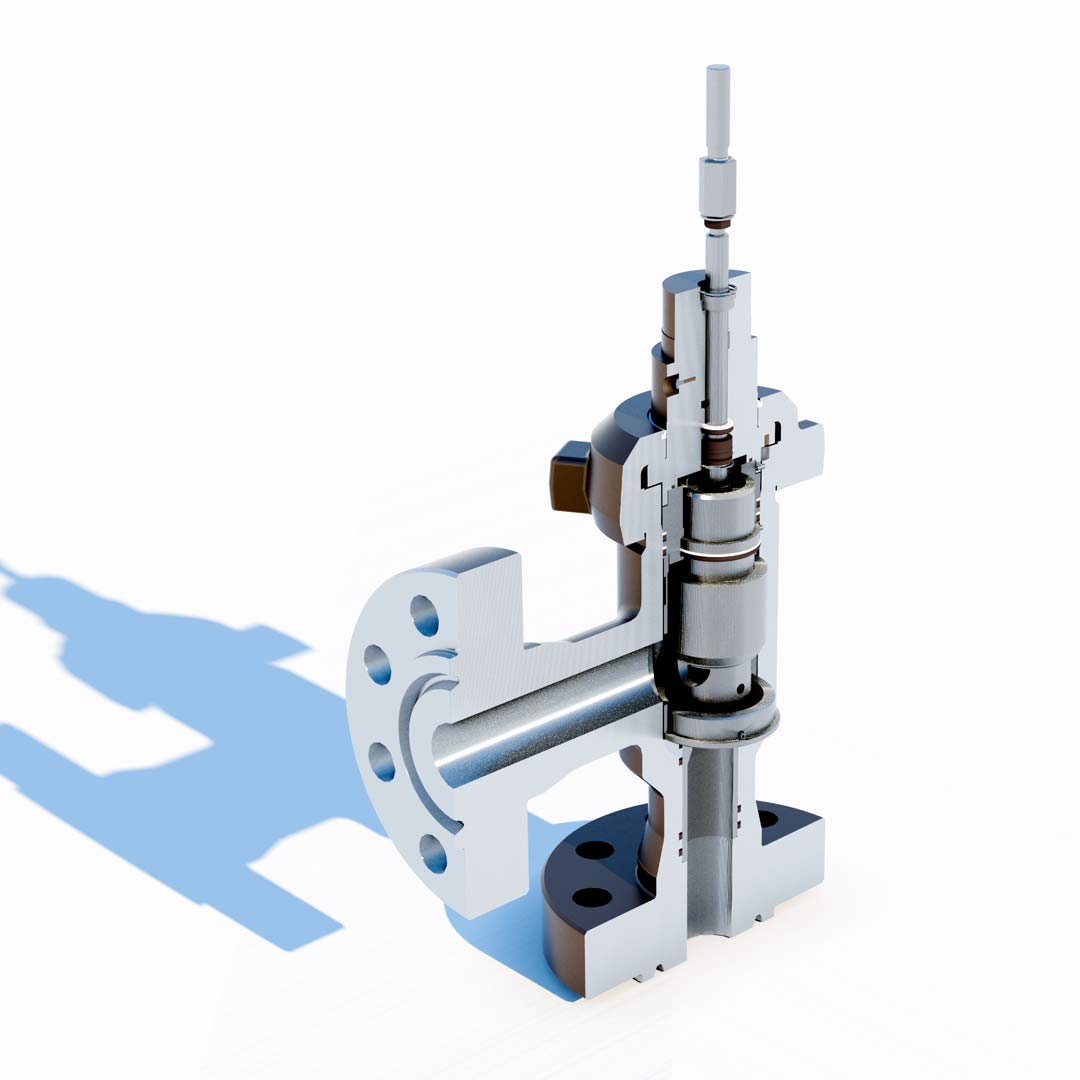

P3 NGX
Built from your feedback.
Engineered for longer runs.
The next generation of Master Flo's most trusted production choke. Re-engineered around customer-driven improvements that extend run time, reduce wear, and cut downtime.
Why we built it
When we asked our customers what they wanted from a next-generation P3, the answers were consistent: make it last longer between services, hold shut-in tighter, and make it easier to work on.
The P3 NGX is the answer to that brief, every change is traceable to something an operator told us they needed.
What's new
Lower inlet velocities
Improved annular geometry reduces velocity where erosion concentrates. Less wear, longer trim life.
Better flow management
Greater external sleeve overlap at full-open improves impingement and flow control, extending service intervals.
Extended shut-in capability
Expanded deadband drives upstream flow further from the seat providing better shut-in between services.
Full-length Tungsten Carbide outlet wear sleeve
Verified to dissipate turbulent flow inside the sleeve, protecting the body.
Fast-acting close
Designed for fast-acting control on 24VDC linear electric actuation.
Canister-style insert
Fully pinned, easily removed from the body. Reduce service time, get back to production.
CSS stem seal with secondary backup
Primary CSS stem seal paired with a new secondary seal — added redundancy and reduced fugitive emissions.
Standard I/O dimensions
Consistent face-to-face across 3" and 4" configurations — drop-in ready for your existing footprint.
Specifications
| Sizes | 3", 4" |
| End connections | RTJ and RF, any combination of 3" or 4" |
| Pressure classes | 600 / 1500 / 2500 (standard — other configurations available on engineering review) |
| Max Cv | 76 |
| Closure | HUN (Standard) or Bolted Bonnet (Optional) |
| Standard actuation | Linear electric 24VDC (Bettis CM32, Calscan BA-15L) |
| Optional actuation | Pneumatic, hydraulic, Fisher |
| Trim | Standard 4-port, 17-4 SS or Tungsten Carbide |
| Standards | API 6A PSL-2, ISO 10423 |
Sized for the field
The P3 NGX shares the proven P3 platform footprint, which means easier specification, faster engineering review, and no surprises in the field. Standard 3″ I/O is 11.50″. Standard 4″ I/O is 13.19″. Other configurations available on engineering review.
